The oil level indicators of the MESSKO® MTO series measure the level in the oil conservator of transformers using two different types of float movement – radial or axial – in relation to the oil conservator. In the standard version, the float movement is radial; the version with axial float movement is suitable for vessels in which only a small float movement is possible. The float movement can be reproduced in various ratios.
MESSKO® MTO oil level indicators consist of a housing with display scale and a float. The inspection glass is made of laminated safety glass with UV filter. The bayonet lock and the seal ensure safe closing and protection of the moving parts inside the housing.
Your advantages at a glance
– Extremely durable and functionally reliable
– High accuracy due to state-of-the-art measuring technology
– No readjustment or recalibration needed over the entire service life
– Radial or axial design with different floats for adaptation to various tank geometries
– Inspection glass made of laminated safety glass with integrated UV filter
– Scratch-resistant and colorfast dials
– Switchless or with limit switches freely adjustable over the scale range
– Versions compliant with IEC or ANSI
– Modbus RTU interface with individual scale setting – CX painting specification in accordance with ISO 12944 9
– Complies with EMC standard IEC 61000 6 5 (Level 4)

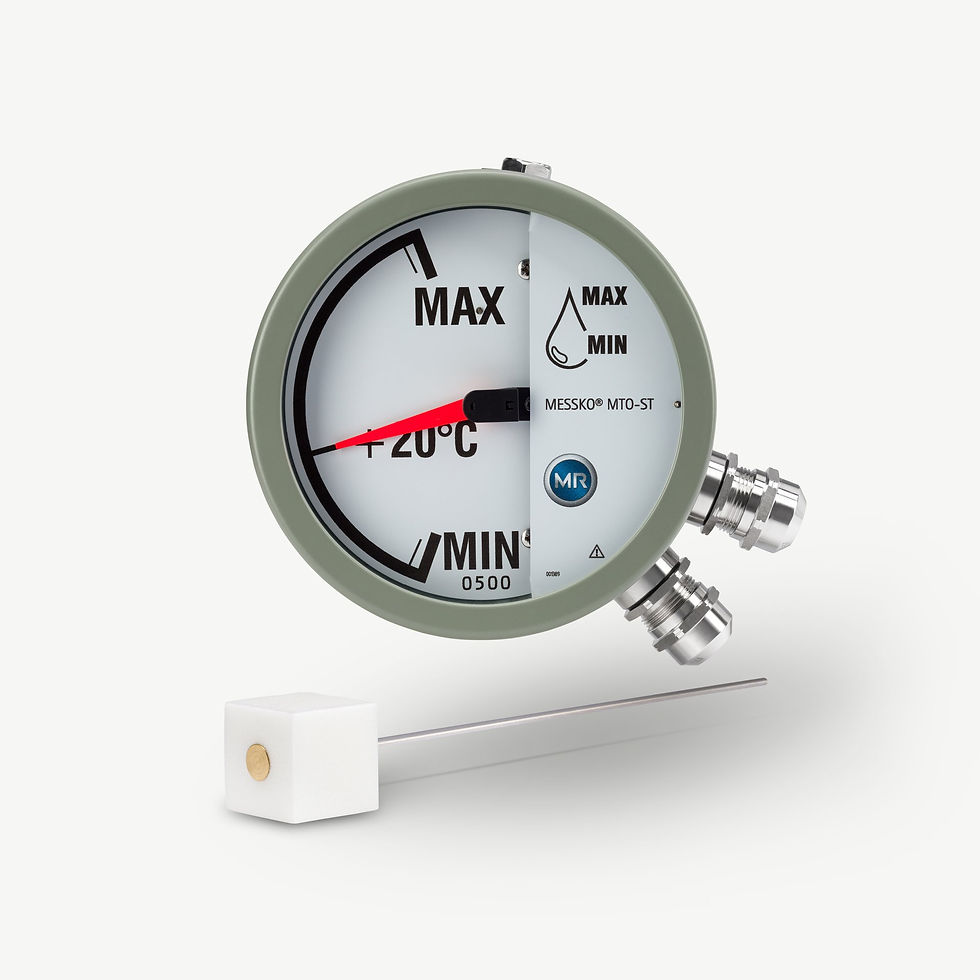

MESSKO MTO Oil Level Indicator
